High Low Voltage Clamp Current Meter Tester Digital H/L Clamp Meter with Measuring Range AC 0mA～1200A Resolution 1mA

QIUSUO High Low Voltage Clamp Current Meter Tester Digital H/L Clamp Meter with Measuring Range AC 0mA～1200A Resolution 1mA Technical specification Range:0.01mA~1200A (50/60Hz automatic) Resolution:0.01mA Current Accuracy(23℃±3℃, below 70%RH ): 0mA～99.9A: ±1%±5dgt 100A～599A: ±1.5%±5dgt 600A～1200A:±2%±5dgt Weight：3450g(including insulation rod and battery)（batteries are not included during the shipment!!） Line Voltage:Below 60kV(bare wire below 35kV) (operated with 5 insulation rods) Power Supply:6V DC(LR03×4 alkaline dry batteries) Dimension:76mm×255mm×31mm Clamp Dimension:Φ48mm LCD Dimension:47mm×28.5mm Sampling Rate:2 times/s PEAK Hold:Automatically maintain the high test value, in usual testing mode, press key HOLD till the lighting of PEAK, that is, start PEAK to maintain this function Data Memory:99 sets, memory process is shown by MEM , full storage is shown by blinking “FULL” Data Hold:In usual testing mode, press HOLD key to keep data, shown by “HOLD” Data Access:“MR” indication, can access to all data Overflow Display:Over-range overflow function: shown in “OL A” Automatic Shutdown:15 minutes after boot Battery Voltage:When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement Insulation Strength:AC 100kV/rms (The telescopic insulation rod is fully opened between the two ends ) Accessories:Meter: 1 piece;Scalable insulation rod : 1PCS; meter box: 1 piece

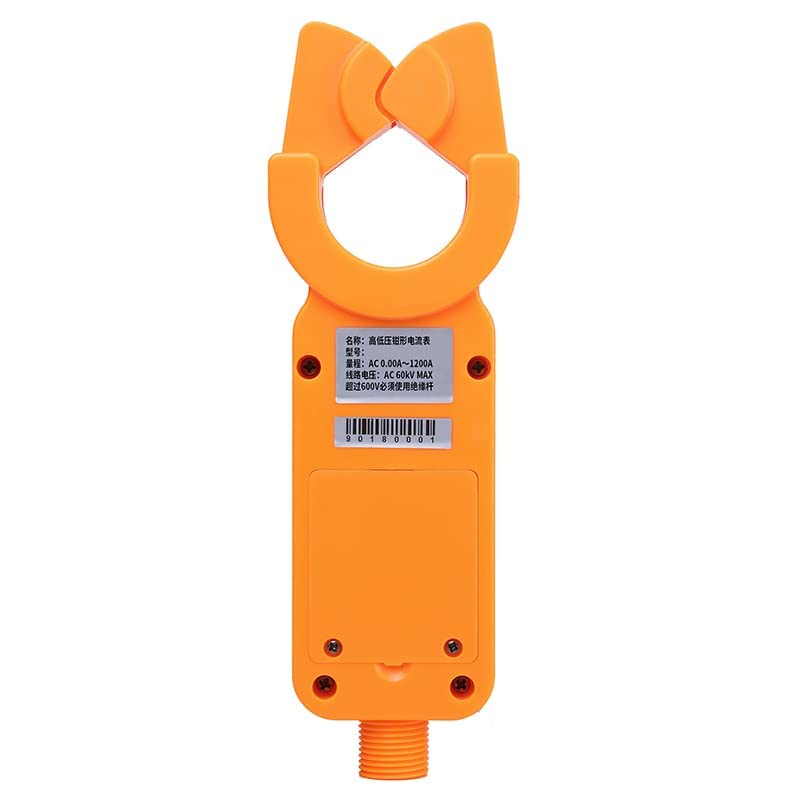

• The high and low voltage clamp ammeter range 0mA-1200A, resolution 1mA, jaw size φ48mm.
• The series high and low voltage clamp ammeter clamp head and guide area of the integrated design, to ensure that the perennial uninterrupted test of high precision, high reliability, high stability.
• The series high and low voltage clamp ammeter breaks through the traditional structure, specially designed and manufactured for measuring high voltage current, adopting CT technology and mask digital integration technology.
• The high and low voltage clamp ammeter can be used for 60kV below the line with insulating jacket or 35kV below the bare conductor high-voltage line current measurement, sampling rate of 2 times / sec, with data retention, data preservation and other functions.

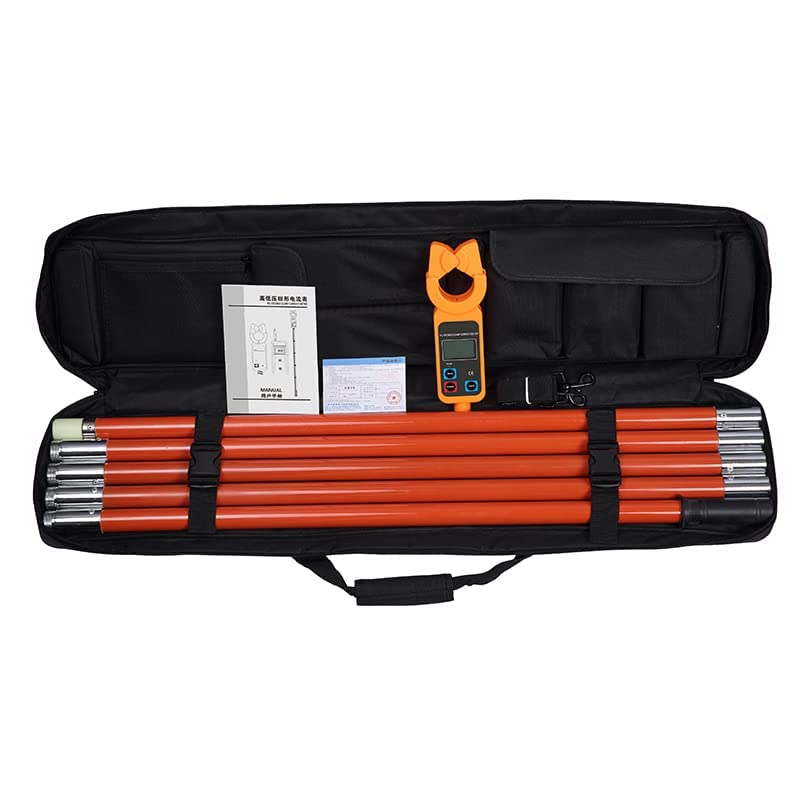

• The ammeter consists of a special clamp-on ammeter with a high-voltage insulating rod, and its B-type - wireless transmission of test data, equipped with a wireless receiver, can be straight line within 30 meters to receive the measured data. If the insulating rod is not used, it can also be used as a high-precision low-voltage clamp-on ammeter.
